BTICINO VIDEO DISPLAY INTERCOM CLASSE 100X16E white Wi-Fi 344682

INSTRUCTION

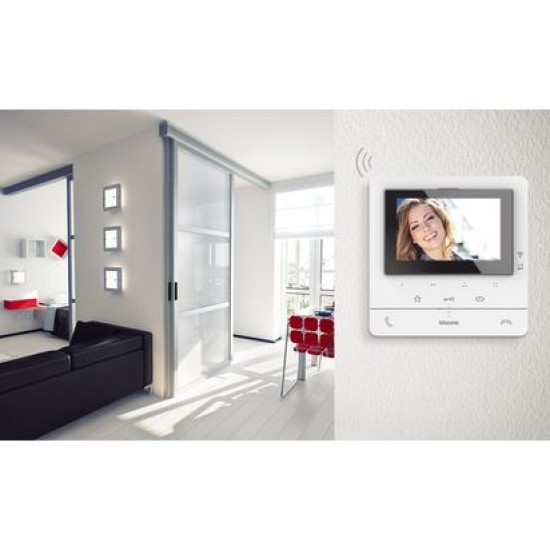

Classe 100X16E with Netatmo Hands-free connected video internal unit

Classe 100X16E with Netatmo 2 wires / Wifi handsfree connected video internal unit with inductive loop and 5" colour LCD display. It has 2 physical keys for the control of the main video door entry functions – answer and end a call – it has 3 touch keys for the control of the main functions – door lock release, staircase light control and entrance panel activation/scrolling – there are further 4 configurable touch keys that perform different functions – e.g. staircase light control, intercom, additional door lock activation, generic activations. The device has a side lever to adjust: colour, brightness and display contrast, audio volume, call tone volume and Wifi configuration. There are call exclusion notification LEDs and Wifi. Also, thanks to the Wifi connection, you can associate the video internal unit to the Home + Security App (available for Android and iOS). You can manage the main video internal unit functions (receiving calls, opening the door lock, activating the entrance panel/scrolling, FWR updating and additional activations) from the App. Through the Home + Security App it is also possible to manage the products of the Netatmo security offer (Outdoor and Indoor cameras, door and window sensors, internal siren and smoke detector). This allows you to quickly and easily create a Smart security system. The installation can be made to the wall using the bracket supplied or using table support accessories (2 x 344692) – to be purchased separately. The device, also equipped with the professional studio (office) function, must be configured.

Dimensions 165x164x20.5mm

Rated voltage 20-27V

Maximum cable section 2x1mmq

Plant type 2 fili / 2Wires

Installation height 160-165cm

Operating temperature 5 - 40°C

Resolution 800 x 480

Wi-Fi Si / Yes

Teleloop Si / Yes

Colour Bianco /White

Series Classe 100
